OpenCart – Mastercard Gateway
Created date: 05-04-23 |
Updated date: 23-04-25 |
Plugin version: 1.3.2 |
API version: 100
Configuration
Once the Mastercard Gateway extension is installed, follow these steps to access and configure it:
1. Access the Configuration Menu

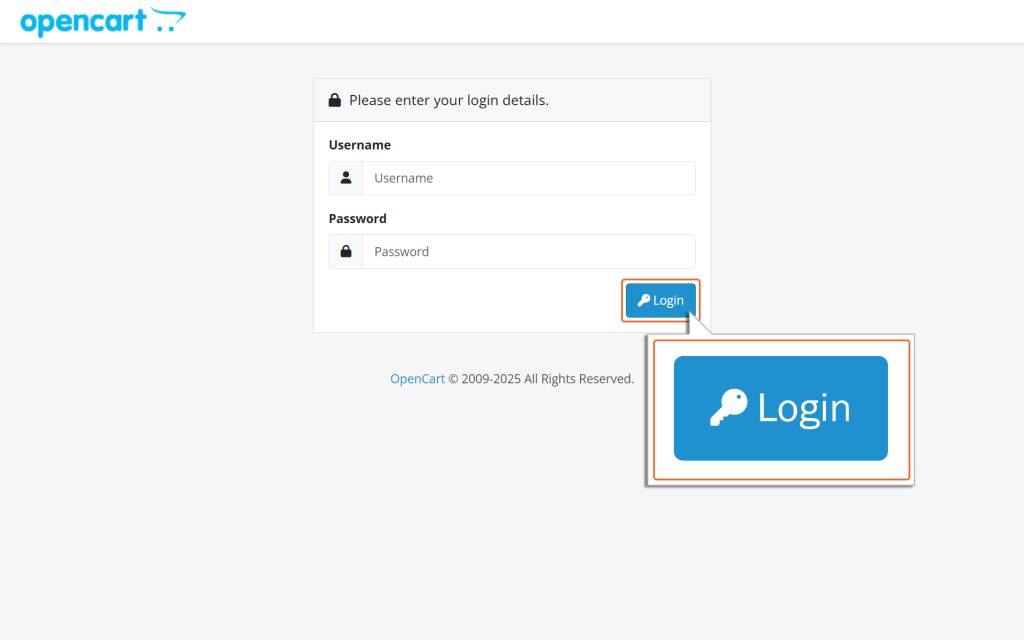

- First, log in to your OpenCart Admin Panel.
- Once logged in, you will be redirected to the Admin dashboard.

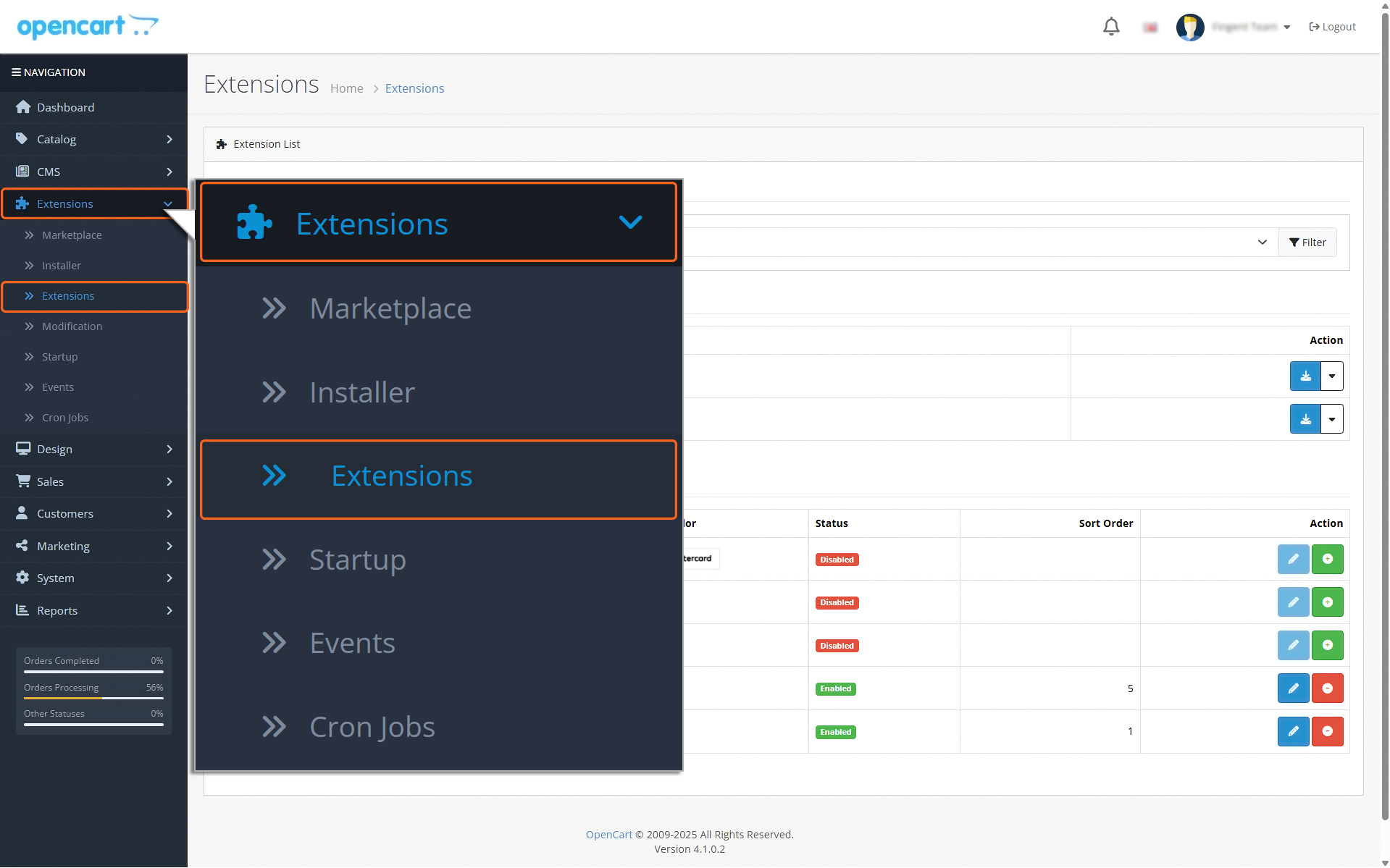

From the dashboard, navigate to the menu on the left side and follow this path:

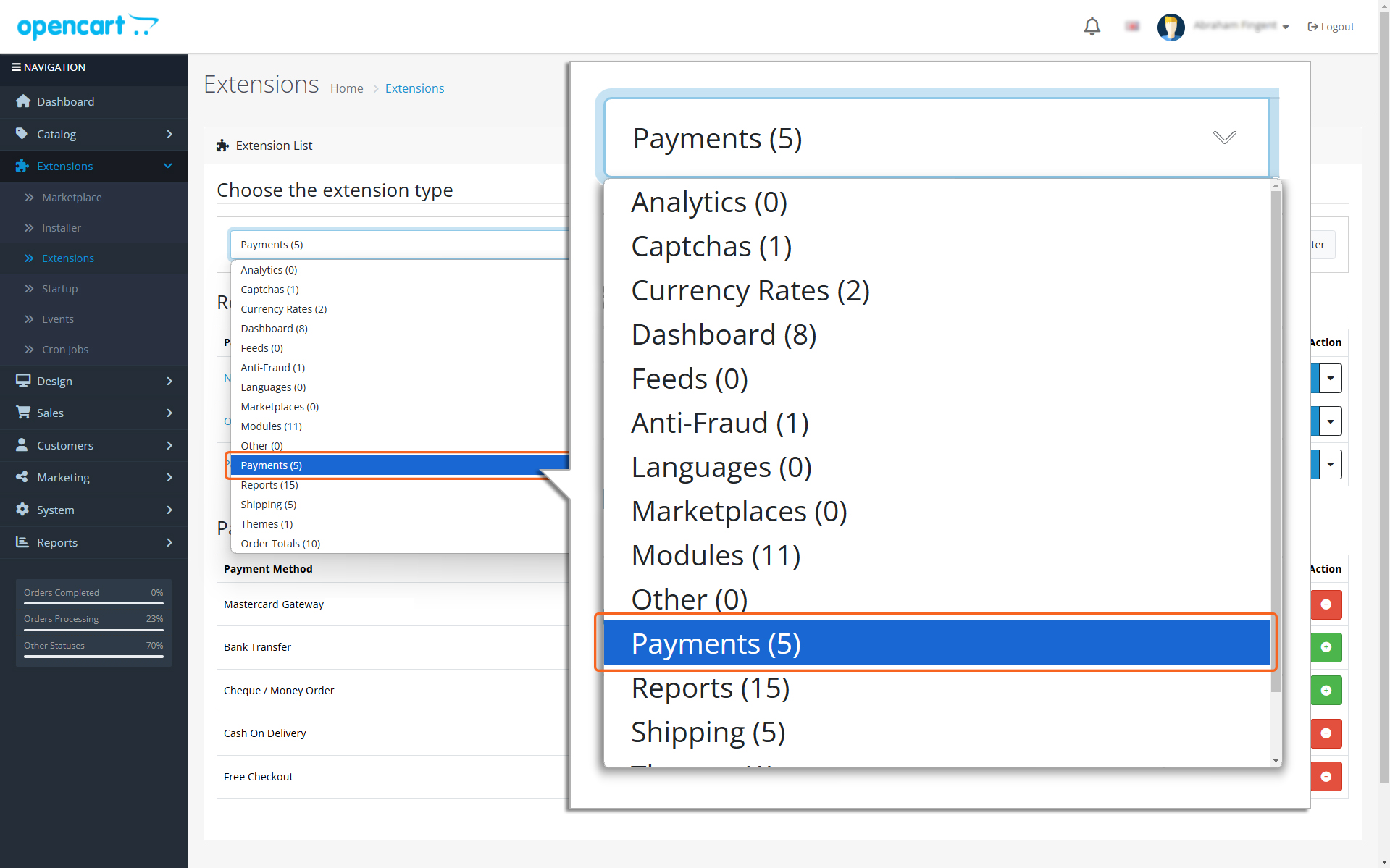

Extensions → Extensions → Choose the extension type dropdown → Payments.
This is where you can set up and manage the payment methods for your store.
2. Locate the Mastercard Module

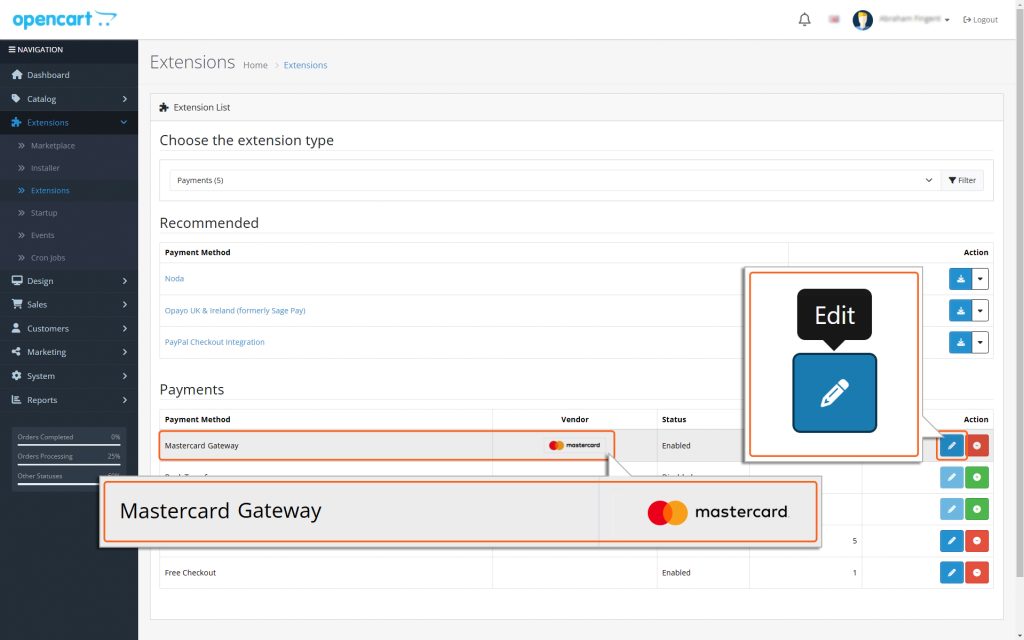

- Scroll down the page until you find the module labeled Mastercard Gateway.
3. Configure the Extension
- Click the ‘Pencil’ icon next to the Mastercard Gateway module.

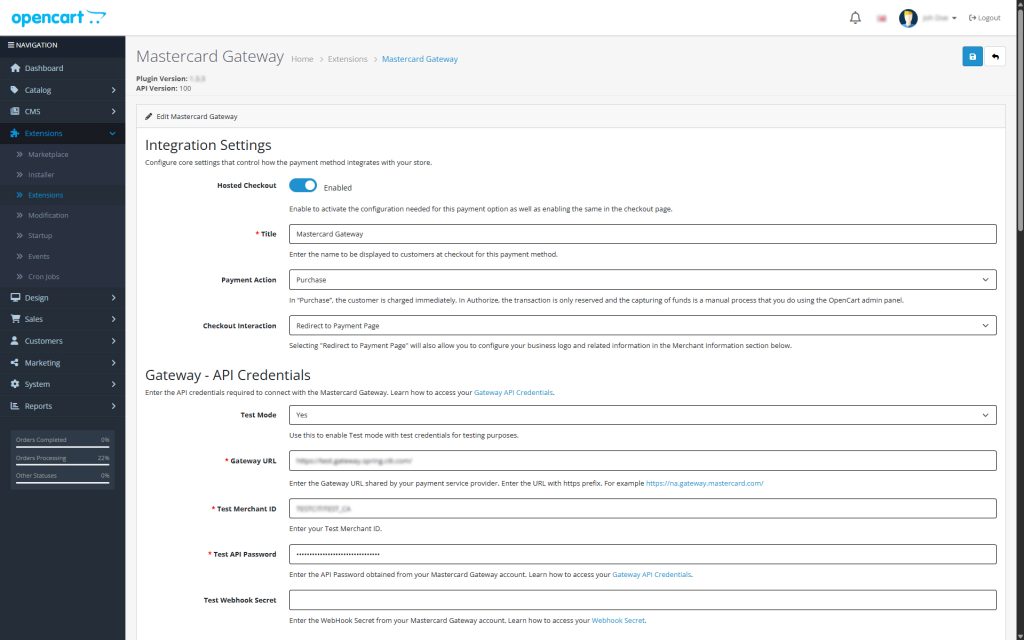

- In the Mastercard module, you’ll see options to how you want to configure the payments. There are three tabs to configure fields:
- General: In the ‘General’ tab, you can specify initial transaction options, integration model, checkout interaction and more.
- Gateway Settings: In the ‘Gateway Settings’ tab, you can select the mode, Merchant ID, API Password, Gateway Instance, etc., for your payment gateway.
- Additional Options: In the ‘Additional Options’ tab, you can select the debug mode, order ID prefix, order status, etc., for different payment cases.
